Place of Origin:
China
Brand Name:
HUATAO
Certification:
ISO9001
Model Number:
HTC-80
Contact Us
Video

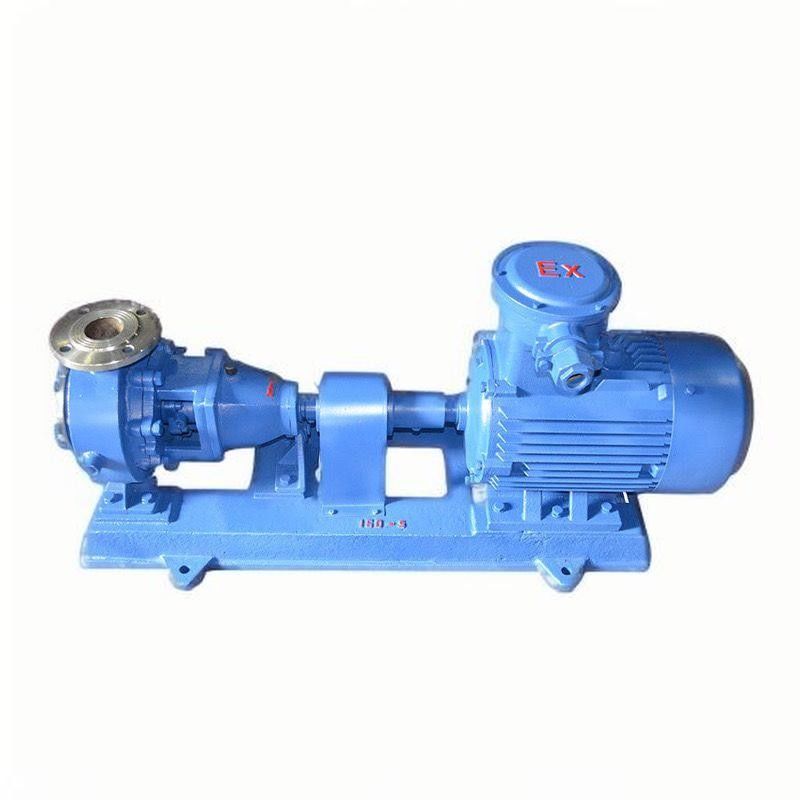

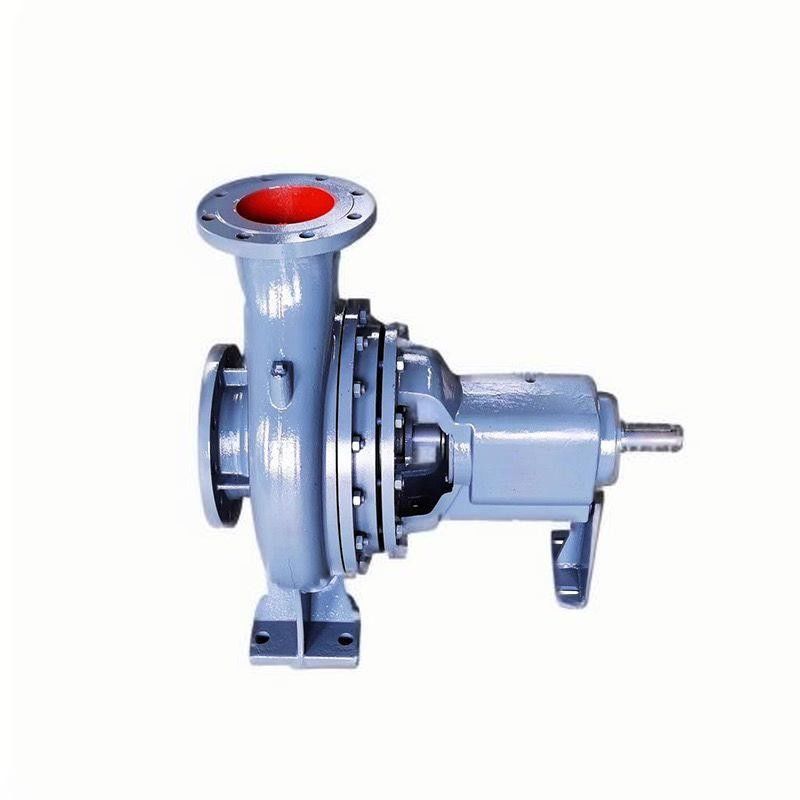

Chemical centrifugal pump is designed for chemical fluid transportation. Its core component impeller, driven by the motor rotating at high speed, centrifugal force will be thrown to the edge of the impeller, so that the fluid to obtain kinetic energy and pressure energy, discharged from the outlet, while the center of the impeller to form a low-pressure area, the continuous inhalation of fluids.
The pump body is mostly made of corrosion-resistant materials, such as stainless steel, engineering plastics, etc., which can cope with corrosive media such as acid and alkali. The sealing device is reliable and can prevent the leakage of harmful medium. It has simple structure, stable operation, convenient operation, and can flexibly adjust the flow and pressure by adjusting the motor speed and valve opening, and is widely used in all kinds of chemical production links .
The performance parameters can be flexibly adjusted by changing the impeller diameter, rotational speed and so on.
Lower maintenance cost, parts are easy to replace.
Long service life, can run stably for a long time under normal maintenance.
Smaller volume, small footprint, suitable for installation in chemical sites with limited space.
Lighter weight, easy to transport and install.
| Type | Flow(m³/h) | Head(m) | Shaft Power(kW) | Power(kW) | Effic(%) | (NPSH)r(m) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| IH50-32-125 | 7.5,12.5,15.0 | 23,20,18 | 1.09,1.33,1.50 | 2.2 | 43,51,49 | 2.0,2.0,2.5 | 45 |
| IH50-32-125A | 6.8,11.3,13.6 | 18.8,16.5,14.7 | 0.87,1.01,1.16 | 1.5 | 40,47,46 | 2.0,2.0,2.5 | 45 |
| IH50-32-160 | 7.5,15.0 | 34.5,30 | 2.13,2.37,2.45 | 3 | 33,50 | 2.0,2.5 | 48 |
| IH65-50-125 | 15,25,30 | 21.3,20,18.6 | 1.85,2.2,2.41 | 3 | 47,62,63 | 2.0,2.0,2.5 | 46 |
| IH65-50-125A | 13.6,22.7,27.3 | 17.6,16.5,15.4 | 1.48,1.67,1.91 | 2.2 | 44,61,59.9 | 2.0,2.0,2.5 | 46 |
Wastewater treatment: urban and industrial wastewater treatment plants need to deal with large amounts of sewage. Chemical centrifugal pumps can convey sewage containing solid particles and impurities, and elevate sewage from the catchment basin to various parts of the treatment process, such as aeration tanks and sedimentation tanks. Its large flow conveying capacity and anti-clogging performance to ensure efficient sewage treatment. By adjusting the flow rate to adapt to changes in sewage volume at different times of the day, it helps sewage to meet the discharge standards.
Food processing: In food and beverage production, chemical centrifugal pumps are used for conveying fruit juice, syrup, milk and other materials. Its material is non-toxic, non-polluting and meets food hygiene requirements. In the process of beverage blending, the flow of various ingredients is precisely controlled to ensure the consistency of product flavor. And smooth operation, avoid excessive mixing of materials, to maintain the original quality of materials.
