Place of Origin:
China
Brand Name:
Huatao
Certification:
CE
Model Number:
Pulp pump
Contact Us
Video

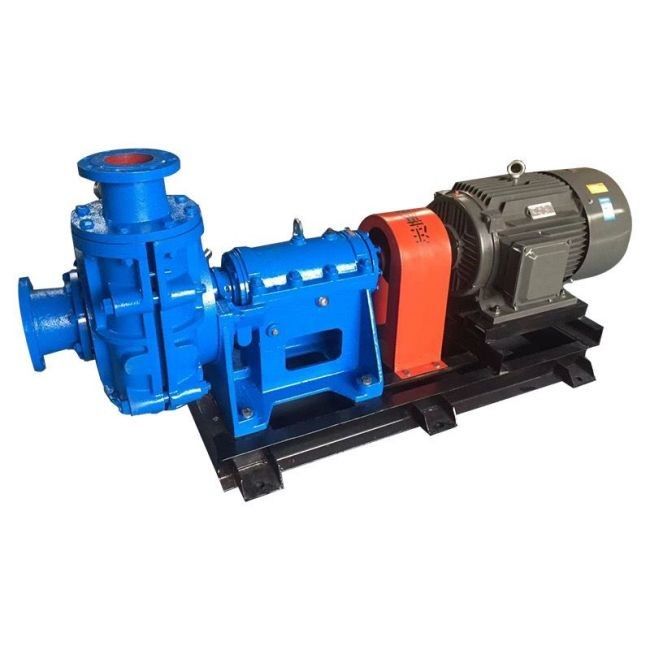

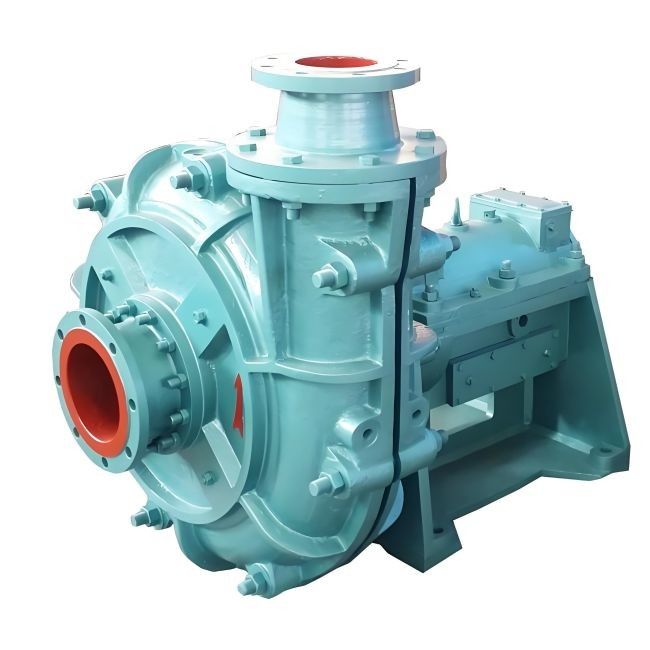

Our Pulp Pump can operate in temperatures ranging from -20℃ to 150℃, making it suitable for use in various industrial environments. With a power range of 2.2-280KW, our Pulp Pump has the necessary power to handle tough industrial applications. Additionally, we offer OEM support, giving our customers the freedom to customize the product to suit their unique industrial requirements.
One of the standout features of our Pulp Pump is its ability to handle desulphurization pump applications. The Pressure Reducing Cover sealing method ensures that the pump can handle Desulfurization wastewater effectively. This feature makes our Pulp Pump an ideal choice for FGD desulfurization circulating pump applications.
Overall, our Pulp Pump is a reliable and efficient solution for any industrial setup that requires a pump that can handle pulp, syrup starch, chemical slurry, and industrial wastewater. Its ability to handle desulphurization pump applications makes it a standout product in the market. With our OEM support, you can customize our Pulp Pump to meet your specific industrial needs.
• Impeller - Fully open impeller, large flow channel design, precision casting, 3-6 blades, this structure can reduce axial force, and will not generate bubbles during the conveying process, will not block the impeller channel, and increase the slurry concentration.
• Volute - Single-stage vortex casing, large size, double-layer casing design to reduce radial force and axis deviation.
• Material - Various wetted parts materials are available, such as cast iron, SS304, SS316L, duplex stainless steel, etc.
• Shaft seal - Mechanical seal and packing seal can be used as required
• Severe application - Very suitable for conveying media containing solids (such as pulp, paper or wastewater applications)
| Product Name: | Pulp Pump |
| Service Life: | More Than 20 Years |
| Sealing Method: | Pressure Reducing Cover, Auxiliary Impeller Seal and Mechanical Seal |
| Material: | Stainless Steel, Cast Iron |
| Type: | Horizontal, Single-stage, Single-suction, Cantilever Double-casing Centrifugal |
| Number of Impellers: | 3/6 |
| Flow Rate: | 20-3000m3/h |
| Speed: | 1450-2900rpm |
| Application: | Papermaking, Electricity, Mining, Coal, Metallurgy, Environmental Protection, etc. |
| Temperature: | -20℃-150℃ |
The Huatao Pulp Pump is an ideal product for various applications, including papermaking, electricity, mining, coal, metallurgy, environmental protection, and more. The pump is specially designed to handle various types of slurries, including FGD desulfurization circulating pump, desulfurization slurry pump, and flue gas desulfurization pump. It can handle abrasive and corrosive materials with ease, making it an ideal product for harsh environments.
The Huatao Pulp Pump has a power range of 2.2-280KW, which makes it suitable for various industrial applications. The pump is designed to provide excellent performance with high efficiency, low energy consumption, and low maintenance. Its cantilever double-casing design makes it easy to install and maintain, reducing downtime and saving costs.
Huatao Supply The Spare Parts For All Kinds of Pump
Huatao Pumps Package, Shipment, Workshop
Exhibition And Customer Visting
Please ask for pump details and price by inquiry@huataogroup.com. For any questions will reply within 24 hours.
