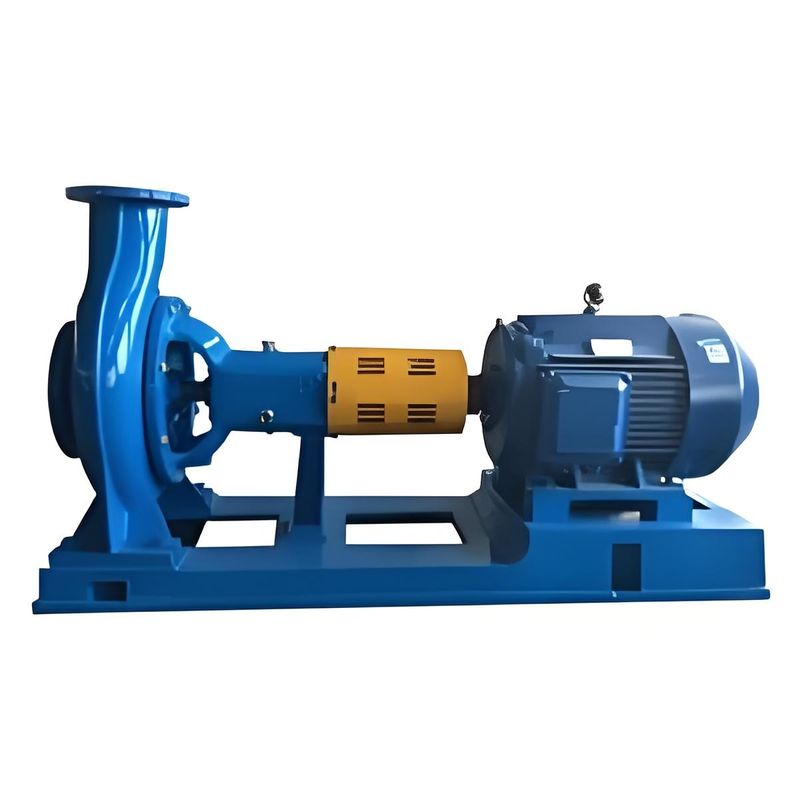

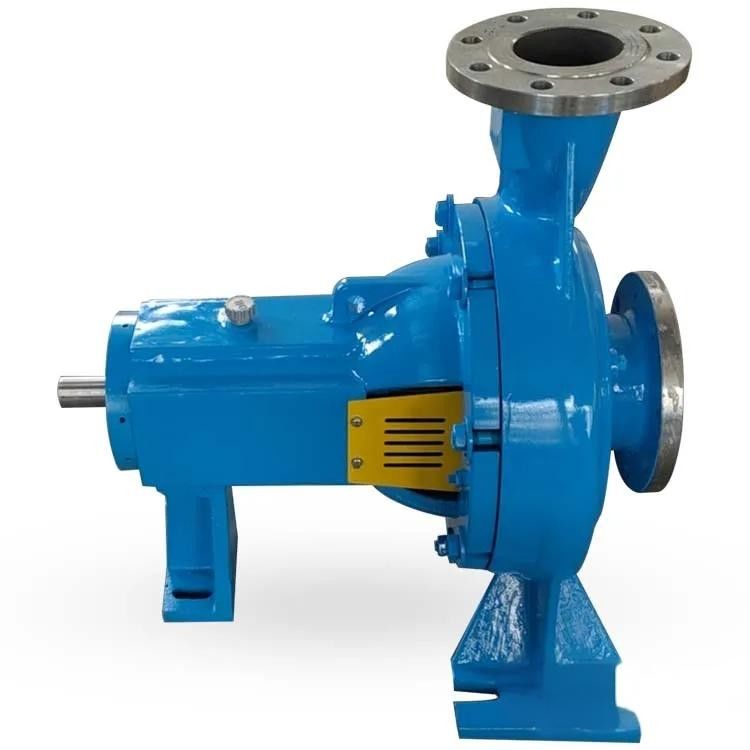

Alternative Waste Pulp Horizontal Centrifugal Water Pump 100m3/H

Replace Andritz VP Paper Stock Pumps for Recycled Fibre Preparation

Andritz VP slurry pump specification:

Pump type: Horizontal
Materials: Cast Iron, Duplex, Super Duplex, Stainless Steel
Seal arrangement: Mechanical Seal, Double Seal
Max temperature: 200 Celsius

Andritz VP slurry pump feature:

• Impeller – Adopting full open type impeller with large channel design by precision casting, No. of vanes is 3-6 vanes,This configuration can reduce the axial force, And in the transporting, it will not generate bubbles, non-clog impeller channel,Improving the pulp concentration.
• Volute casing – Adopting single stage vortex casing, big size, Casing is designed as duoble casing structure for reducing radial force and axis deviation.
• Materials – various mateials of Wetted parts are available, Such as Cast iron,SS304,SS316L,Duplex stainless steel etc
• Shaft seal – Mechanical seals and packing seal can be used as per requested
• Severe application – Excellently suited for transporting media containing solids (e.g. for pulp, paper, or effluent applications)

Andritz VP slurry pump parameter table

Design features:

This series of pumps also features a modular system, and its standard parts can be used with other pump types, further improving its applicability and flexibility.
The design of the ANDRITZ S series centrifugal pumps also pays special attention to wear resistance and durability. The pump body and pump cover are protected by two wear-resistant liners, and the sturdy shaft ensures minimum shaft deviation and low vibration, thus ensuring the long life and low maintenance requirements of the pump.
The entire series uses only a few different sizes of bearing frames, providing a reliable open impeller design, which is characterized by low axial force and is suitable for conveying a variety of different media.
In terms of the sealing system, the ANDRITZ S series centrifugal pumps provide a variety of sealing options, including single mechanical seals that do not require external sealing water and containerized double mechanical seals that require external sealing water, etc., to meet the needs of different working conditions.

Andritz S pulp pumps and pump spare parts field applications:

ANDRITZ S series centrifugal pumps are widely used to transport clean and solid particles, demonstrating their superior performance in efficiency, service life, easy maintenance and economic benefits, and can meet the requirements of high-end customers.
